PSLA 270

The Best of SLA Meets the Best of Light Projection - For Real Production.

The Next-Generation in 3D Printers


A highly productive system that merges the speed and material performance benefits of light projection technology with the first-article success, accuracy, and surface finish of SLA.

A compact, mid-frame printer that produces batch-level, true production-grade parts in a fraction of the time it would take conventional SLA.

It is designed to operate using Figure 4 range of engineering and production-grade resins to produce best-in-class smoothness and injection-molded like part quality.

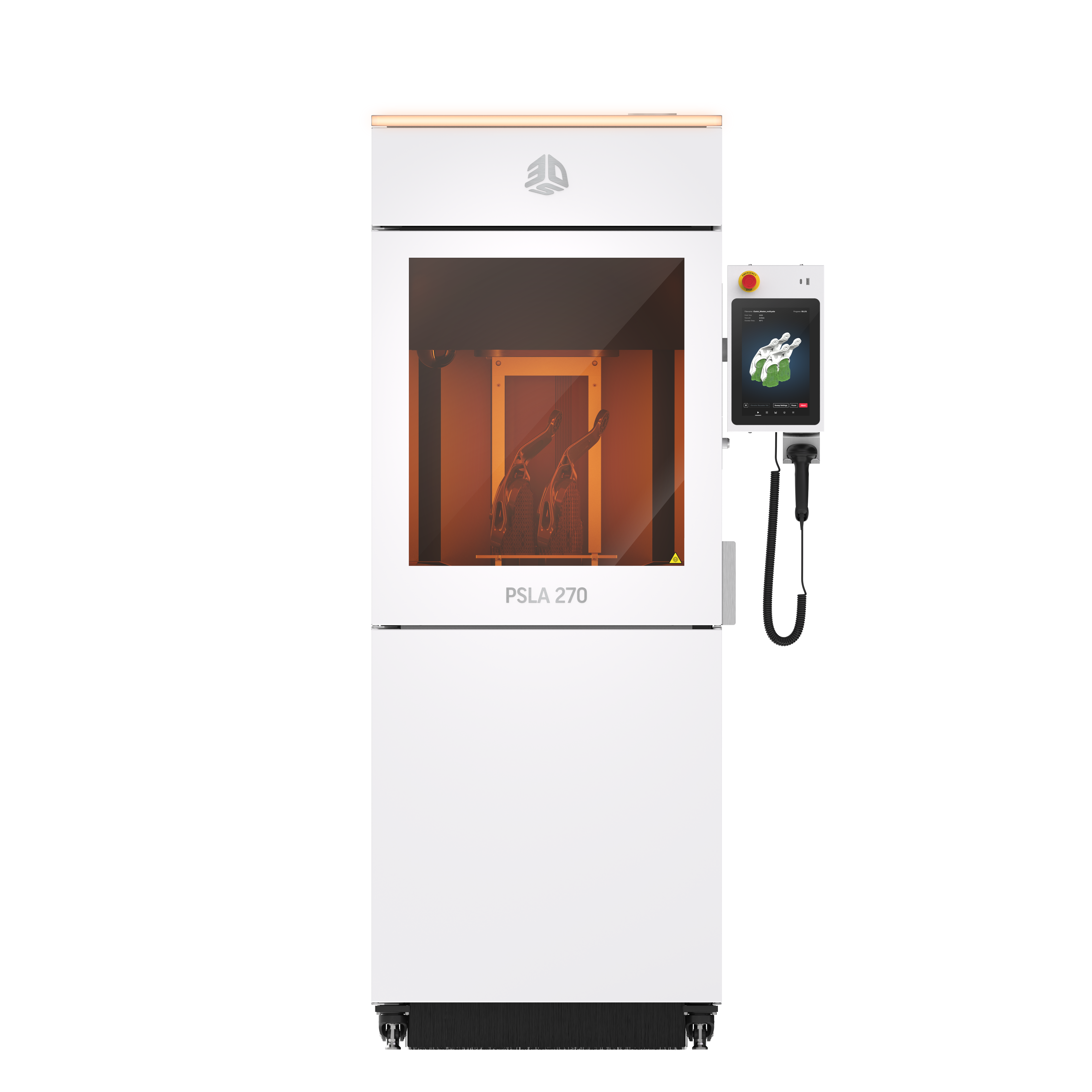

3D-Systems-PSLA-270-front-1-yellow-LED



Fast

Dual HD projector-based SLA offers up to 5x faster curing layer times compared to laser-based technology.

Precise

Our high power 7 watt projectors deliver first article success at 90µm pixel resolution, with exceptional print quality and repeatability.

Versatile

Compact size with a large build volume capacity.  The perfect tool for service bureau and production applications.

Easy to Install

Passes through a standard doorway and can be set up in a few hours.  You only need a standard power outlet to start.

3d-systems-psla-principles-graphic-2



Projection-based SLA System

The PSLA 270 architecture merges the best of both worlds: the pixel productivity of projection-based technology and the buoyant, non-contract precision of SLA.  Its dual high-resolution projectors deliver unmatched pixel efficiency, far surpassing traditional laser systems.



First Article Success & Accuracy

With the PSLA 270 there is no contact, and no gravity-based distortion.  The end result is remarkable precision, consistency and part quality irrespective of geometry with a fraction of the support structure needed by other solutions.  While building inverted with a membrane works great for small parts, it introduces distortion from peeling and gravity on bulky parts with large cross-sections.

3d-systems-psla-270-printed-part-1

Compact size with a max. build capacity 242 x 265 x 300 mm (9.5 x 10.4 x 11.8 in)

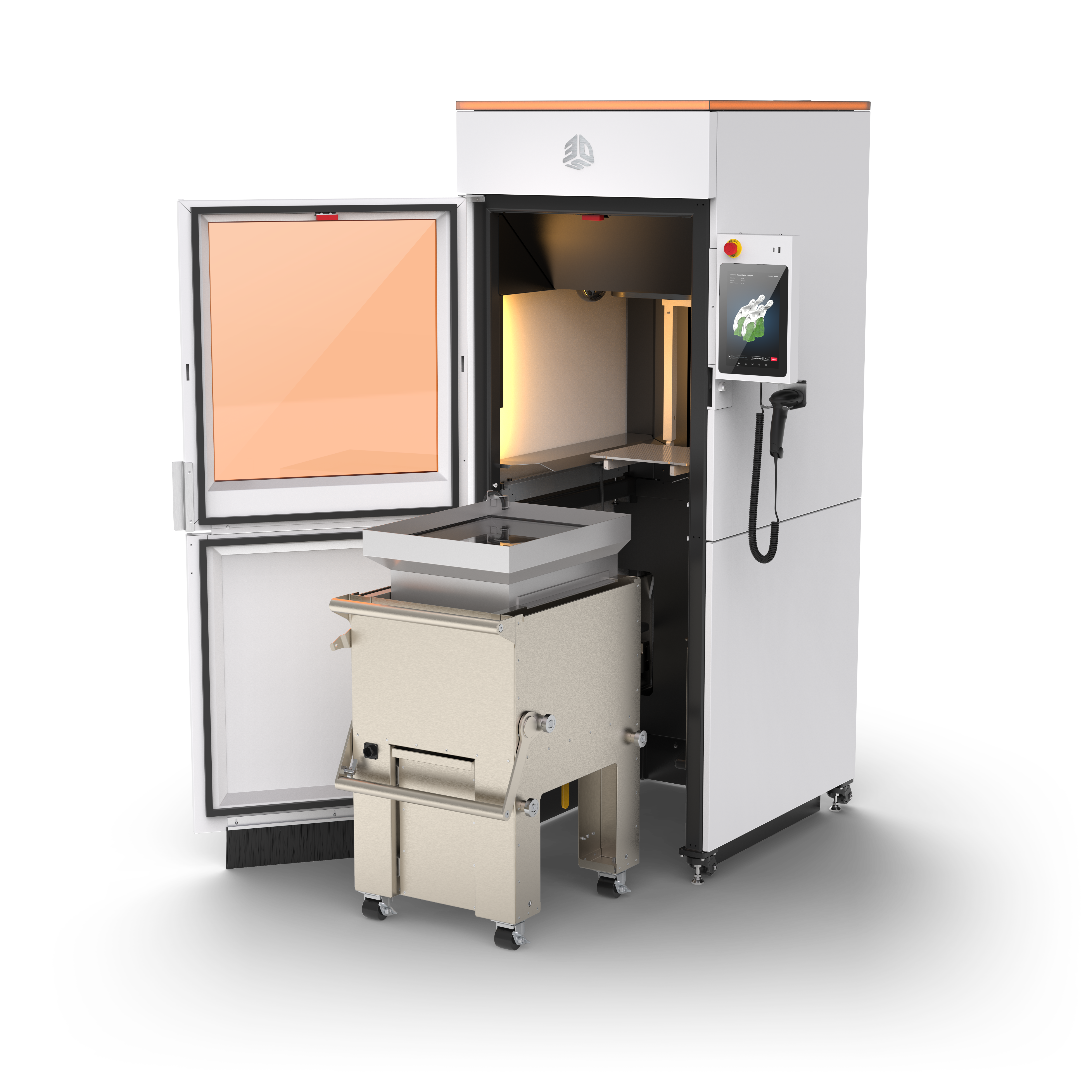

3D-Systems-PSLA-270-hero-4-open-with-vat-out

Material change takes 15 mins. when previous design was taking hours.



Easy to Change Material

Material changes have never been easier. The PSLA 270 features a mobile cart designed to accommodate a variety of material vat sizes to best fit your application.  The vat system is designed to keep the elevator, displacer, and recoater nested with the vat of resin they are used with.

The Material Delivery Module (MDM) is also an integral part of the mobile cart so nothing needs to be cleaned during a material swap.  One cart is simply exchanged for another and all the necessary components come with it.  Additionally, precision vat location to the frame of the printer ensures the smoothest possible material change.

Compatible Materials

3d-systems-figure4-pro-blk-10-material-hero-1
Figure 4 PRO-BLK 10

Production-grade, rigid material for production parts

3d-systems-figure-4-rigid-white-material-hero-2-1
FIGURE 4 RIGID WHITE

Opaque rigid white production-grade plastic

3d-systems-figure-4-rigid-gray-material-hero-2-1
FIGURE 4 RIGID GRAY

High-contrast gray plastic for long-term use parts with balanced thermal and mechanical properties

3d-systems-figure-4-hi-temp-300-amb-material-hero-2-1
FIGURE 4 HI TEMP 300-AMB

High temperature resistant translucent plastic with HDT over 300°C

Figure-4-eggshell-amb-10_thumbnail-1
FIGURE 4 EGGSHELL-AMB 10

Process-optimized material for sacrificial tooling to cast silicone

Figure4-flex-blk-20_thumbnail-1
FIGURE 4 FLEX-BLK 20

High stability, durable and flexible plastic

figure-4-tough-60c-white-thumbnail-1
FIGURE 4 TOUGH 60C WHITE

White plastic for long-term use parts with a good combination of impact strength, elongation, and tensile strength

figure-4-fr-vo-material-hero-1
FIGURE 4 TOUGH FR V0 BLACK

Tough black, UL94 V0 rated flame-retardant production plastic

Production-grade Resins

The PSLA 270 is designed to operate with the Figure 4 range of engineering and production-grade resins delivering printed parts with an injection-molded like quality and best-in-class smoothness.

Choose from our ever-expanding range of rigid, tough, durable with thermoplastic-like behaviors, castable, heat-resistant, and biocompatible capable materials in a range of colors and translucencies.  Printed parts exhibit long-term UV and humidity stable mechanical properties; up to 8 years for indoor use and up to 1.5 years for outdoor exposure per ASTM D4329 and ASTM G194 methods.



3d-systems-psla-270-diagram-production-grade-resins-2




Technical specifications
  • Printable build volume (xyz): 242 x 265 x 300 mm (9.5 x 10.4 x 11.8 in)
  • Compact printer footprint
  • Projection-based SLA printing using dual 7-watt HD projectors
  • Dual-rail recoating system
  • Add material to vat with auto-fill resin pump or hand pouring
  • Production-grade materials
  • Industry-leading 3D Sprint software for file preparation and production
  • Cloud connectivity for predictive and prompt service with 3D Connect capability
