Xact Metal Metal 3D Printing









Affordable Industrial Metal Additive Manufacturing



Xact Metal brings industrial-grade metal 3D printing within reach of manufacturers, engineering teams, research institutions, and workforce development programs. Designed to simplify metal additive manufacturing while maintaining high-quality results, Xact Metal systems offer an ideal entry point into laser powder bed fusion (LPBF) technology.

MasterGraphics delivers Xact Metal solutions, training, application support, and implementation services to help organizations successfully adopt metal additive manufacturing.



Contact Us to Learn More



XM200G-400x625



IMG_20210816_094036-2-edited-1-1536x864

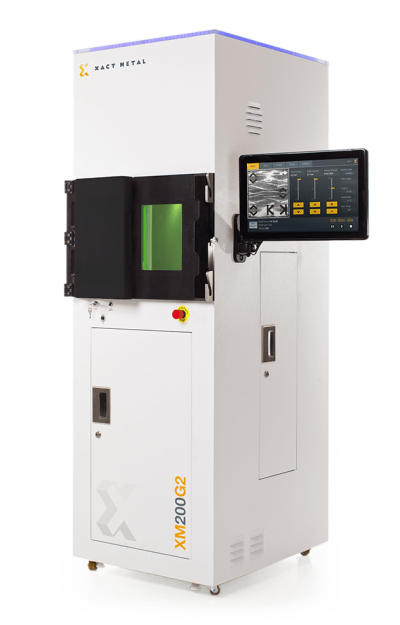

XM200G Series Specs

BUILD VOLUME

150 x 150 x 150 mm
(5.9 x 5.9 x 5.9 in)

LASER TYPE*
XM200G – Single 100W, 200W, or 400W Yb fiber laser
XM200G2 – Dual 100W, 200W, or 400W Yb fiber lasers

*Class 1 Laser Product

BUILD SPEED
XM200G – ~6 to 9 cc/hr
XM200G2 – ~12 to 16 cc/hr



JOGGING SPEED
Up to 20.7 m/sec (Standard galvo), 34.6 m/sec (Performance galvo)

PRECISION OPTICS SPOT SIZE
Premium F-Theta lens, 50 or 100 µm

GLOVEBOX
Available





ELECTRICAL*
Power Supply 100-120/200-240 VAC Single Phase, 50/60Hz 1.5 kW, 2.0 kW Peak

* Not all configurations available on 120 volts

EXTERIOR DIMENSIONS
650 x 780 x 1,930 mm³ – W x D x H
(25.6 x 30.7 x 76 in³)

POWDER OPTIONS
To learn more about Xact Metal powder options, please visit our materials page.

Xact-4094



Materials

Xact Metal partners with industry-leading powder producers to offer a wide range of high-quality, certified, and proven metal powders for additive manufacturing.

We provide gas-atomized powders to ensure consistent as-printed part density and uniform build rates to meet final printed part specifications.

Xact metal supplies at no additional charge exposure parameters for the metal powders we supply



Ready to bring metal 3D printing in-house?

The XM200G delivers powder-bed fusion performance at a price built for R&D labs and growing manufacturers. Tell us about your parts, and we'll help you configure the right laser, optics, and powder-handling setup.
